Gastronome pans are made out of the best quality and are premium products. GN Pans are available from 2/1 to 1/9 covering all depths and sizes that are made with advanced state of the art manufacturing techniques. GN pans can be used across all industry verticals (catering, cloud kitchen, banquet, restaurants, hotels) and are anti-jamming.
|

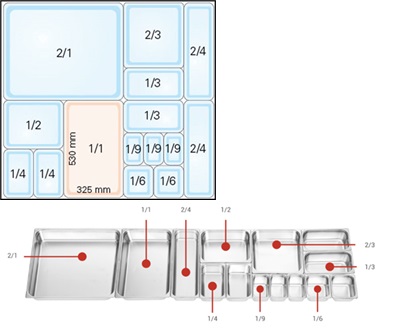

GN Designation |
Dimensions (mm) |
Dimensions (Inches) |
Common Kitchen Application |
|---|---|---|---|
|
GN 2/1 |
650 × 530 |
25.6 × 20.9 |
Large commercial ovens, walk-in fridge racks |
|
GN 1/1 |
530 × 325 |
20.9 × 12.8 |
Full-size chafing dishes, steam ovens, food warmers |
|
GN 2/3 |
354 × 325 |
13.9 × 12.8 |
Medium combi-ovens, smaller buffet stations |
|
GN 1/2 |
325 × 265 |
12.8 × 10.4 |
Side dishes, salad bars, smaller prep wells |
|
GN 2/4 |
530 × 162 |
20.9 × 6.4 |
Long/narrow display wells, specialized presentation |
|
GN 1/3 |
325 × 176 |
12.8 × 6.9 |
Pizza toppings, ice cream displays, prep tables |
|
GN 1/4 |
265 × 162 |
10.4 × 6.4 |
Sauces, dressings, bar garnish stations |
|
GN 1/6 |
176 × 162 |
6.9 × 6.4 |
Spices, chopped condiments, salad toppings |
|
GN 1/9 |
176 × 108 |
6.9 × 4.3 |
Small garnish trays, seeds, compact condiment stations |
| Depth (mm) | Depth (Inches) | GN 1/1 Vol. | GN 1/2 Vol. | GN 1/3 Vol. |
|---|---|---|---|---|
| 20 mm | 0.8 in | ~1.9 L | ~0.85 L | — |
| 40 mm | 1.5 in | ~4.5 L | ~1.75 L | ~1.5 L |
| 65 mm | 2.5 in | ~7.4 L | ~3.5 L | ~2.25 L |
| 100 mm | 4.0 in | ~12.6 L | ~5.5 L | ~3.5 L |
| 150 mm | 6.0 in | ~18.0 L | ~8.5 L | ~5.5 L |
| 200 mm | 8.0 in | ~25.0 L | ~11.0 L | ~7.25 L |
